With plenty of power packed into a compact size, the Ditch Witch JT20 helps you work faster so you can tackle more jobs. More productivity. More profits.

POWER: Rack-and-pinion design offers 20,000lbs of pullback force for outstanding performance on a wide range of underground installations. Turbocharged with a 74.5-hp Tier-4 compliant Deutz diesel engine, the JT20 requires no after-treatment.

PRODUCTIVITY: The JT20 features an enhanced cooling system for improved airflow and increases usable horsepower for maximized downhole efficiency. Compact size offers greater productivity and maneuverability on job sites. Dual rear independent stabilizers enhance stability on uneven terrain.

OPERATORS STATION: Operator’s station features an ergonomic, adjustable seat to reduce operator strain and keep the operator comfortable for long hours. The machine’s open-top vise wrenches are angled toward the operator for an excellent view of the tool joint, and they require no daily maintenance.

PIPE & TOOLING: The Ditch Witch JT20 directional drill and its drill pipe and downhole tooling are part of a complete horizontal directional drilling(HDD) system designed and manufactured by the Ditch Witch organization to work together with unbeatable efficiency.

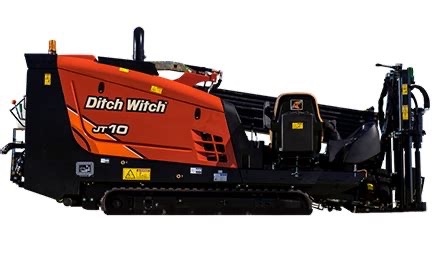

The JT10 boasts unbeatable power in a compact, yet sturdy frame for easy transportation and improved maneuverability on tight jobsites.

POWER: Powered by a Tier 4, 66-hp (49kW) Deutz® diesel engine, the JT10 is the most powerful drill in its class. It can provide 1,100 ft-lb (2066.7 Nm) of rotational torque for maximum strength and durability.

PRODUCTIVITY: With the quickest cycle time in its drill class, the JT10 allows operators to put more pipe in the ground faster. Plus, an onboard fluid tank with the capacity for 40 gal of fresh water provides fluid for short bores and easy cleanup. Allowing operators to effectively drill in tight spaces where an additional fluid mixer wouldn’t fit.

INNOVATIVE DESIGN: Equipped with a heavy-duty anchor system and integrated remote-tracking display, the JT10 is the shortest drill in its class, giving it the ability to effortlessly maneuver in tight job sites. Small and compact, this machine is easy to transport from job to job with a rear ignition for faster jobsite setup.

OPERATOR’S STATION: The JT10 is equipped with a single joystick for quicker and smoother operation, freeing a hand for operators to focus on other tasks. An advanced operator display provides a clear view into all engine diagnostics for boosted performance and productivity. The machine’s open-top vise wrenches are angled toward the operator for an excellent view of the tool joint.
